Current Equipment

Home QTH

Equipment:(11-24-2025)



















In the photo above from the top:

Diawa CN801HP, ALS-1300

Broadcast Tools SS 4.1 III Switcher/Router Relay packs.

Behringer Ultralink Pro MX-882 This is a audio splitter/mixer to distribute audio to various equipment.

Power strip with individually switched outlets.

Hermes Lite 2 Plus (Yes, the Flex is still in the photo.)

Dentron MT-2000A Tuner


Audio is an Behringer B-1 condenser mic, processed with a Behringer X Air XR12.

I use Klipsch Promedia 2.1 speakers and Superlux HD668B headphones

Antennas:

20m Homebrew 1/4 wave ground mounted vertical currently with 8 radials.

This was modified into the 5 band vertical covering 20 - 10m.  I have not yet added any more radials.

75m/40m  inverted V



  Mobile:



Icom IC 2730 Black

Kenwood TS-480HX 200w HF/50MHz

High Sierra HS-1500 HF screwdriver

Diamond SG-7500 Super Gainer vhf/uhf






Portable:

I use a Kenwood 590SG.  (See the article on installing the TCXO.) I also have a IC 718 and LDG auto tuner, but seldom use it as I prefer the RX and audio of the Kenwood.

 POTA is powered by a Eco Worthy 20ah LiFePo.  I have constructed an antenna system that allows me to quickly chage elements on my home would 1:1 current choke feedpoint for the inverted V when POTA activating.

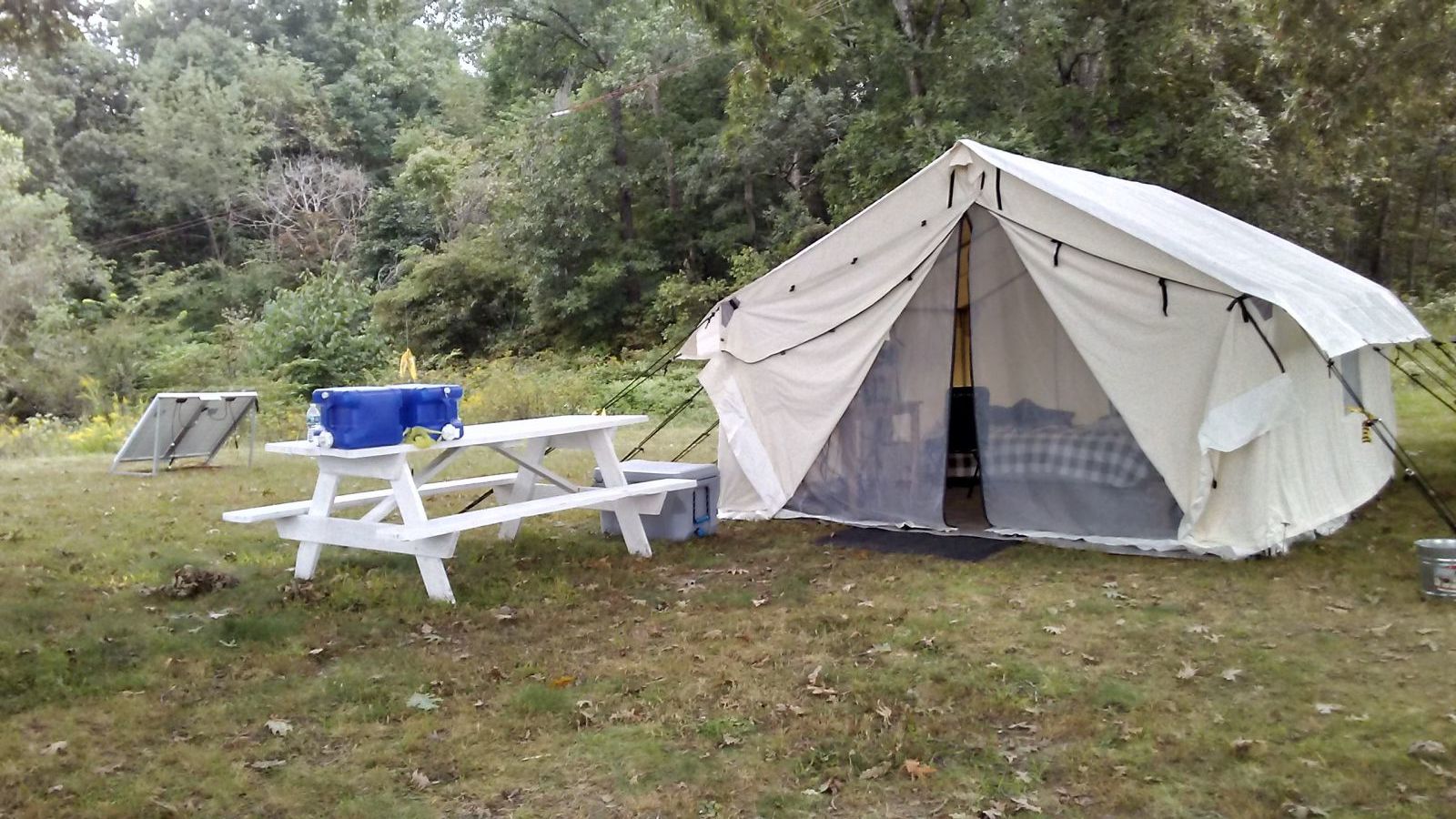

In the wall tent power is created by two Renogy 100w monocrystalline panels in series, EPEver MPPT 30A charge controller, and Napa 100ah AGM battery.

The antenna could be anything, but usually some type of dipole hung in a tree.  I tried out a Wolf River coil and whip.  The antenna worked well, but I don't like to have radials lying on the ground creating a trip hazard.  I have learned of ops using some type of wire mesh under these coils and getting good results without the large area needed for radials.
